Air Outlets > Square & Rectangular Diffusers

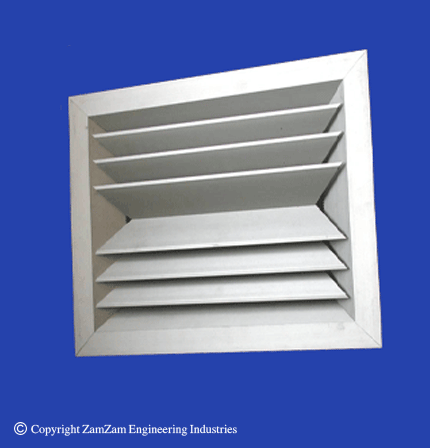

SQUARE & RECTANGULAR CEILING DIFFUSERS

Click below for full size pictures

Availability :

Available in nominal sizes of of 10,12,14,18,20 and 24 inches with/without plenum box and volume control damper.
Other sizes can be manufactured in  special order.

Colors :

A basic electrostatic coating color (off white code: 9010) s applied as a standard Wide range of other colors are also available.

Technical Data :

Full technical data  including , selection method, performance curves, Installations instructions, Physical dimensions,....... and ordering key are available on CDs upon request for free.

PDF CATALOG
